F360 Series 2P 4P IEC61008 RCD Circuit Breaker IP20 63A

WENZHOU SANTUO ELECTRICAL CO.,LTD.
Contact Now

F360 Series 2P 4P IEC61008 RCD Circuit Breaker IP20 63A

Brand Name : SONTUOEC, WZSTEC

Model Number : ST360

Certification : CE, SAA, Semko ,ISO9001

Place of Origin : Wenzhou, China

MOQ : 2000PCS

Price : Negotiable

Supply Ability : 5000PCS/DAY

Delivery Time : 15DAYS

Packaging Details : 100pcs/ctns

Standard : IEC 61008.1

In : 16,25,32,40,,63A

Ue : 230/400V

Pole : 2p 4p

Credential : CE

Color : White

Contact Now

SONTUOEC brand F360 series 2P 4P RCD IEC61008 Residual Current Circuit Breaker RCCB competitive price



ST60 series Residual Current Circuit Breakers(RCCB/RCD) are aimed at protecting an individual from the risks of electrical shocks, electrocution and fires that are caused due to faulty wiring or earth faults.

Technical Data



  Standard   IEC/EN 61008-1

Electrical

features

Rated current in A 16 25 40 63
Poles   2P 4P
Rated voltage Ue V 230/400
Insulation coltage Ui V 500
Rated frequency Hz 50/60Hz
Rated residual making and breaking capacity Im A 0.03 0.1 0.3
Rated impulse withstand voltage (1.2/50)Uipm V 6000
Dielectric test voltage at and ind.Freq.for 1min KV 2.5
Pollution degree   2
Break time under In S ≤0.1

Mechanical

features

Electrical life   4000
Machanical life   8000
Fault current indicator   Yes
Protection degree   IP 20
Reference temperature of setting of thermal element °C 30
Ambient temperature(with daily average≤35°C) °C -5~+40
Storage temperature °C -25...+70
Installation Terminal connection type   Cable/ U-type busbar/ Pin-type busbar
Terminal size top/bottom for cable

mm²

AWG

25

18-3

Terminal size top/bottom for busbar mm²

AWG

25

18-3

Tightening torque

N*m

In-lbs.

2.5

22

Mounting

OnDIN rail FN

60715(35mm)

by means of fast clip device

Connection   From top



1. In compliance with IEC/EN60898-1.

2. Bilateral busbar wiring capalilities to adapt tothe wider use of permises.

3. Leading in electronic driven,more cost-effectively.

4. Maximum connecting ability of 25mm²,wiring torque 3Nm,applicable to a variety of installing equipments,wiring stronger.

5. Protection class:IP20

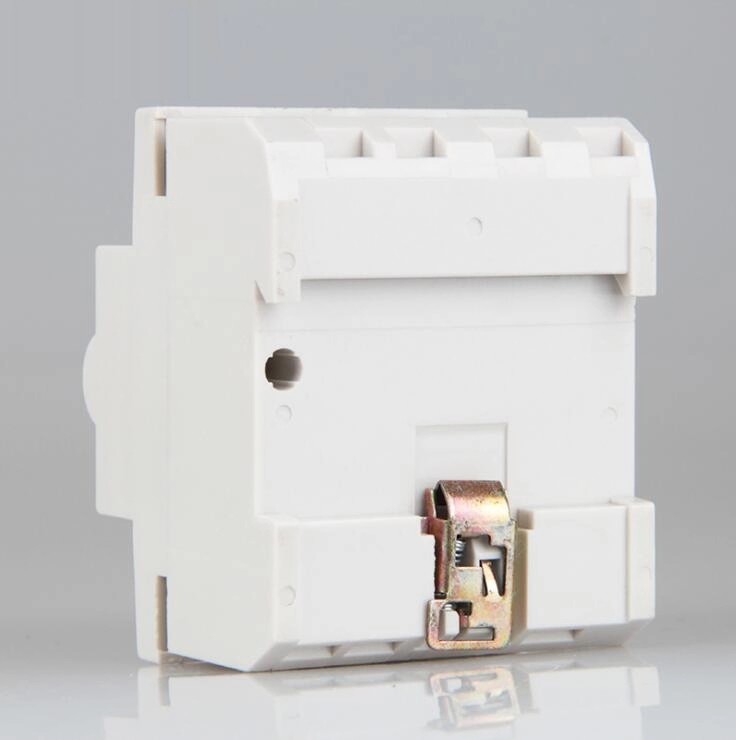

F360 Series 2P 4P IEC61008 RCD Circuit Breaker IP20 63AF360 Series 2P 4P IEC61008 RCD Circuit Breaker IP20 63A

F360 Series 2P 4P IEC61008 RCD Circuit Breaker IP20 63A

F360 Series 2P 4P IEC61008 RCD Circuit Breaker IP20 63A



F360 Series 2P 4P IEC61008 RCD Circuit Breaker IP20 63A







Our services have competitively price,we can provide after sale service,our product quality are very good,it has a long life .
