White Single Phase RCBO High Short Circuit Current

Brand Name : SONTUOEC ,WZSTEC

Model Number : STRO9-40L

Certification : CE

Place of Origin : China

MOQ : 500PCS

Price : Negotiable

Supply Ability : 3000PCS/DAYS

Delivery Time : 15DAYS

Packaging Details : 100pcs/ctns

In : 2,,4,6,10,16,20,25,32,40A

Pole : 1P+n

Ue : 230/400

Type : RCBO

Mode : Electronic type

Breaking Capacity : 6KA

Contact Now

Long life STRO9-40L 6KA White single Phase RCBO High Short Circuit Current



STRO9-40L residual current circuit breaker is in conformity with the standards of IEC61009.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 230V,three phase 400V,50 or 60Hz.









Sandard IEC/EN61009-1
Electrical
features		 Type(wave form of the earth leakage sensed)   Electro-magnetic type, electronic type
Rated current In A A,AC
Poles P 2(1P+N)
Rated voltage V AC 240/415
Rated Current :   10,16,20,25,32,40A
Rated sensitivity I△n A 0.01,0.03,0.1,0.3,0.5
Insulation voltage Ui V 500
Rated residual making and
breaking capacity I△m		 A 630
Short-circuit current I△c A 6000
SCPD fuse A
6000
Rated frequency Hz 50/60
Pollution degree   2
Mechanical
features		 Electrical life t 4000
Mechanical life t 10000
Protection degree   IP20
Ambient temperature
(with daily average ≤35℃)		 ℃ -25~+40
Storage temperature ℃ -25~+70
Installation Terminal connection type   Cable/U-type busbar/pin-type busbar
Terminal size top/bottom for cable mm2 25
AWG 18-3
Terminal size top/bottom for busbar mm2 25
AWG 18-3
Tightening torque N*m 2.5
In-lbs 22
Mounting   On DIN rail EN 60715(35mm)by means of fast clip device
Connection   From top and bottom

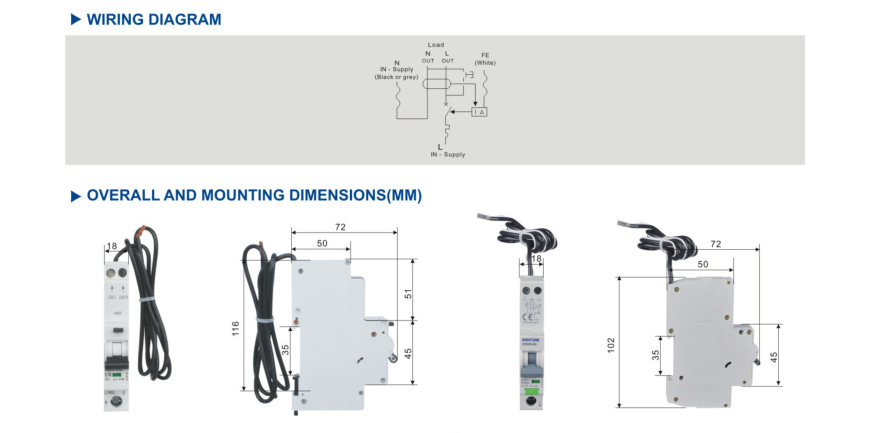

White Single Phase RCBO High Short Circuit Current
