Din Rail 18mm 10KA 6KA Residual Current Circuit Breaker

Product Categories
WENZHOU SANTUO ELECTRICAL CO.,LTD.
Contact Now

Din Rail 18mm 10KA 6KA Residual Current Circuit Breaker

Brand Name : SONTUOEC ,SONTUOC,STUOEC, WZSTEC

Model Number : STRO9-40L

Certification : CE

Place of Origin : Wenzhou, China

MOQ : 500PCS

Price : Negotiable

Supply Ability : 3000PCS/DAYS

Delivery Time : 15DAYS

Packaging Details : 100pcs/ctns

In : 6,10,16,20,25,32,40A

Install : Din Rail

Texture : Plastic

Type : Electrical

Color : White

Breaking Capacity : 10KA, 6KA

name : rcbo device

Pole : 1P+N

Contact Now

18mm 10KA 6KA series with Overcurrent Protection Residual Current Circuit Breaker 1P+N,2P 10mA 30mA 100mA 300mA ELCB RCBO Manufacturer



STRO9-40L residual current circuit breaker is in conformity with the standards of IEC61009.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 230V,three phase 400V,50 or 60Hz.



Construction and Feature

  • Provides protection against earth fault / leakage current , short-circuit and overload .
  • HIgh short-circuit capacity
  • Provides complementary protection against direct contact by human body.
  • Effectively protects electric equipment against insulating failure .
  • Contact position indication
  • Provides protection against over-voltage
  • Provides comprehensive protection to household and commercial distribution sysyems.

Technical Data

  • Type : Electronic type
  • Residual current characteristics : AC; A
  • Pole No. : 1P+N
  • Tripping curve : B , C
  • Rated short-circuit capacity : 10KA , 6KA
  • Rated current (A) : 6 ,10 ,16 , 20 , 25 , 32,40
  • Rated voltage : AC 230/240V
  • Rated frequency : 50Hz/60Hz
  • Rated residual operating current (mA) : 0.03 , 0.1,0.3
  • Tripping duration : instanstaneous≤0.1s
  • Electro-mechanical endurance : 4000cycles
  • Connection terminal : pillar terminal with clamp
  • Connection ca[acity : Flexible conductor 10mm² , Rigid conductor 16mm²
  • Installation : On symmetrical DIN rail 35mm , Panel mounting .





Sandard IEC/EN61009-1
Electrical
features		 Type(wave form of the earth leakage sensed)   Electronic type
Rated current In A A,AC
Poles P 1P+N, 2P  ( 18mm width)
Rated voltage V AC 240/415
Rated Current :   6,10,16,20,25,32,40A
Rated sensitivity I△n A 0.01,0.03,0.1,0.3,0.5
Insulation voltage Ui V 500
Rated residual making and
breaking capacity I△m		 A 630
Short-circuit current I△c A 6000
SCPD fuse A
6000
Rated frequency Hz 50/60
Pollution degree   2
Mechanical
features		 Electrical life t 4000
Mechanical life t 10000
Protection degree   IP20
Ambient temperature
(with daily average ≤35℃)		 ℃ -25~+40
Storage temperature ℃ -25~+70
Installation Terminal connection type   Cable/U-type busbar/pin-type busbar
Terminal size top/bottom for cable mm2 25
AWG 18-3
Terminal size top/bottom for busbar mm2 25
AWG 18-3
Tightening torque N*m 2.5
In-lbs 22
Mounting   On DIN rail EN 60715(35mm)by means of fast clip device
Connection   From top and bottom

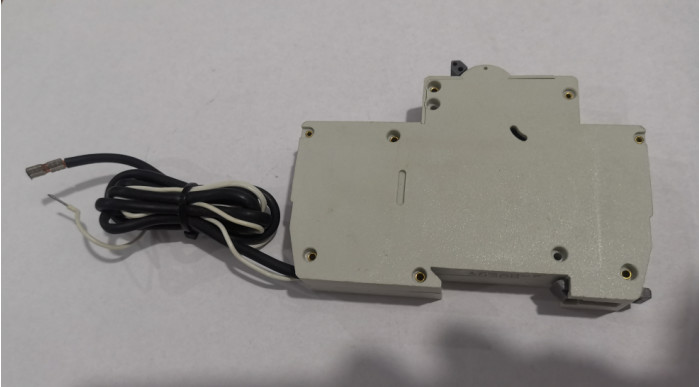

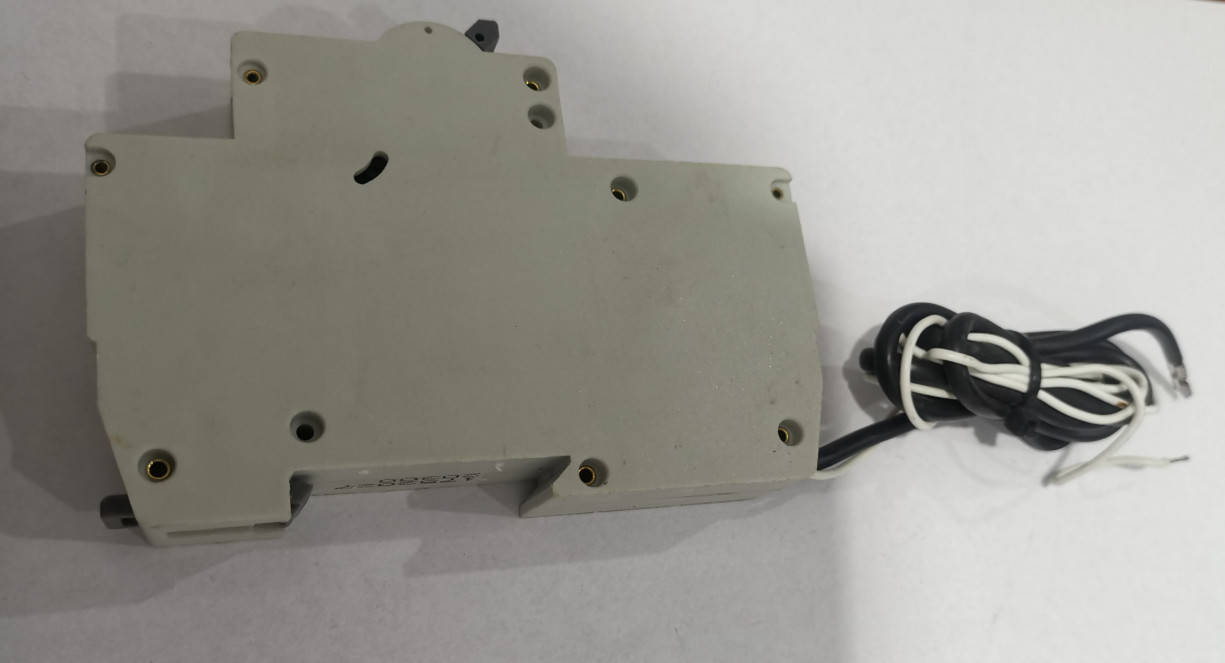

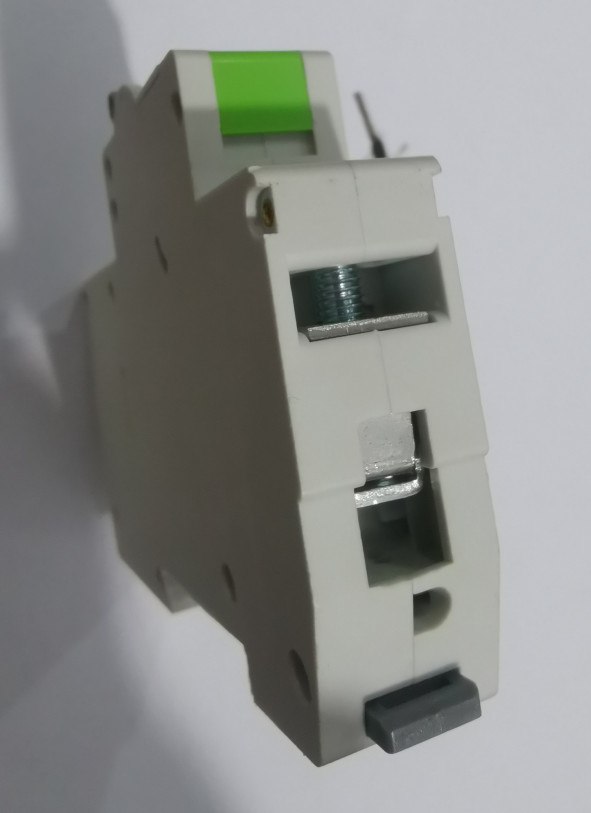

Din Rail 18mm 10KA 6KA Residual Current Circuit Breaker



Din Rail 18mm 10KA 6KA Residual Current Circuit BreakerDin Rail 18mm 10KA 6KA Residual Current Circuit Breaker

Din Rail 18mm 10KA 6KA Residual Current Circuit Breaker
