Din Rail Lighting Sontuoec 2P 63A RCBO Circuit Breaker

Product Categories
WENZHOU SANTUO ELECTRICAL CO.,LTD.
Contact Now

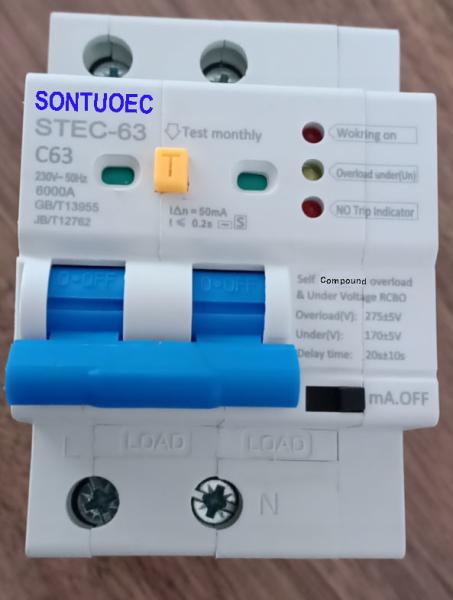

Din Rail Lighting Sontuoec 2P 63A RCBO Circuit Breaker

  • 1
  • 2

Brand Name : SONTUOEC ,WZSTEC

Model Number : STEC-63

Certification : CE

Place of Origin : Wenzhou,China

MOQ : 1000PCS

Price : Negotiable

Supply Ability : 3000PCS/DAY

Delivery Time : 20DAYS

Packaging Details : 100PCS/CTN

Pole : 2P,4P

In : 10,16,20,25,32,40,50,63A

Standard : IEC61009-1

Function : Overload current and Self compound over and under Voltage Protection

Items name : Self Compound over and under voltage protector and Electric Circuit Breaker

function : overload and under voltage protection RCBO

Contact Now

Sontuoec Din Rail Lighting 2P 63A self Compound overload and under voltage type Circuit Breaker RCBO

Function:

STEC-63 series self Compound overload and under voltage type Circuit Breaker (RCBO) is mainly used for lighting for building, protection against overload and leakage current protection under AC230V Single phase (2P),400V three phase(4P),it also has the other function of Self Compound Overload and Under Voltage Protection; rated current from 10A to 63A. It also can be used for non-frequent on and off switch operation under normal circumstance.
Technical Data
Model type
STEC-63
Standard
IEC61009-1
Poles
 2P,  4P
Rated current In(A)
 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated working voltage Ue(AC,V)
AC230V/400V ; 240/415V
   Leakage Current(mA)   30mA; 100mA; 300mA
   Breaking Capacity(kA)     6KA
Rated Frequency(Hz)
AC50Hz/60Hz
Reset Time
 20s+(-)10s
Installation
Din Rail installation
Tripping Time(Limited Current)
Less 60s










 FAQ:





Q1. What advantages do you have?

A1. Our team work on Circuit Breaker more than 20years experience, we have professional in

developing, marketing & production team to offer you the most competitive price and best service.

Q2. What’s your main product?

A2. We have two product project, low voltage Circuit Breaker and Ac Contactor items.

Q3. Could you print our own logo?

A3. Yes, usually, we print our own's brand:SONTUOEC, WZSTEC , and also accept OEM .

Q4. How long is the quality guarantee?
A4. 18months  warranty, our products are 100% inspection.

Q5. How long is the deliver time?

A5. It usually takes about 3 - 5 working days for sample order and 15 - 25 days for normal orders.

Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress,   PayPal,  L/C at sight.
