Electro Magnetic type SONTUOEC Residual Current Operated Circuit Break with overcurrent protection 6a 10a 16a 20a 25a 32a 40a 30mA, 100mA, 300mA with 2P and 4P RCBO circuit breaker
Application:
The Product serves in the line of AC 50Hz,rated voltage 230V and rated current up to 40A to automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value.It can effectively protect personal security and avoid the damage to equipments.
The SONTUOEC circuit-breaker can also function as overload and short-circuit protection and unfrequent changeover of line under normal condition.
The product is conformity with GB16917.1,IEC61009-1 Standards.
| Sandard | IEC/EN61009.1 |
Electrical
features | Type(wave form of the earth leakage sensed) | | Electro-magnetic type, electronic type |
| Rated current In | A | A,AC |
| Poles | P | 2,4 |
| Rated voltage | V | AC 240/415 |
| Rated Current : | | 6,10,16,20,25,32,40A |
| Rated sensitivity I△n | A | 0.01,0.03,0.1,0.3,0.5 |
| Insulation voltage Ui | V | 500 |
Rated residual making and
breaking capacity I△m | A | 630 |
| Short-circuit current I△c | A | 6000 |
| SCPD fuse | A |  |
| Rated frequency | Hz | 50/60 |
| Pollution degree | | 2 |
Mechanical
features | Electrical life | t | 4000 |
| Mechanical life | t | 10000 |
| Protection degree | | IP20 |
Ambient temperature

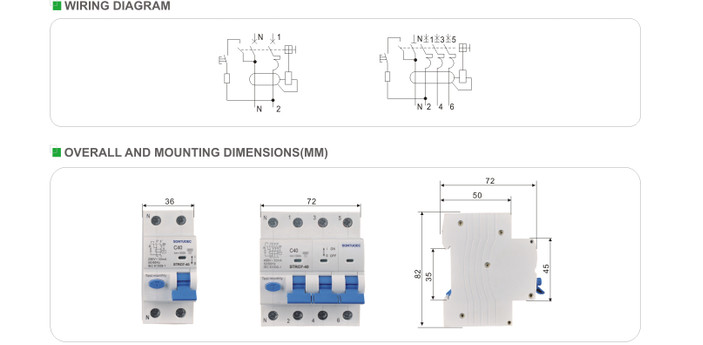

(with daily average ≤35℃) | ℃ | -25~+40 |
| Storage temperature | ℃ | -25~+70 |
| Installation | Terminal connection type | | Cable/U-type busbar/pin-type busbar |
| Terminal size top/bottom for cable | mm2 | 25 |
| AWG | 18-3 |
| Terminal size top/bottom for busbar | mm2 | 25 |
| AWG | 18-3 |
| Tightening torque | N*m | 2.5 |
| In-lbs | 22 |
| Mounting | | On DIN rail EN 60715(35mm)by means of fast clip device |
| Connection | | From top and bottom |
Feature:
1. Without auxiliary power supply,the product is designed with strong immunity and extending protection range against residual current.
2. With higher rated ultimate short circuit,up to 6KA.
3. Reliable,accurate and convenient adjustment of product instantaneous action is ensured.
4. Service life of this SONTUOEC product has been greatly enhanced through specially designed tripping mechanism.
Technical parameters:SONTUOEC RCBO :
1. Rated Current: 6A,10A,16A,20A,25A,32A,40A.
2. Rated residual operating current:0.01A,0.03A,0.1A,0.3A,0.5A.
3. Tripping Characteristics: B(3ln~5ln),C(5ln~10ln),D(10In~50In)
4. According to behaviour in presence of d.c Components:Type A,Type AC.
5. Icn:6000A
6. Rated residual current operated making and breaking capacity IΔm: 630A
7. Rated residual non-operated current: IΔno: 0.5IΔn.
